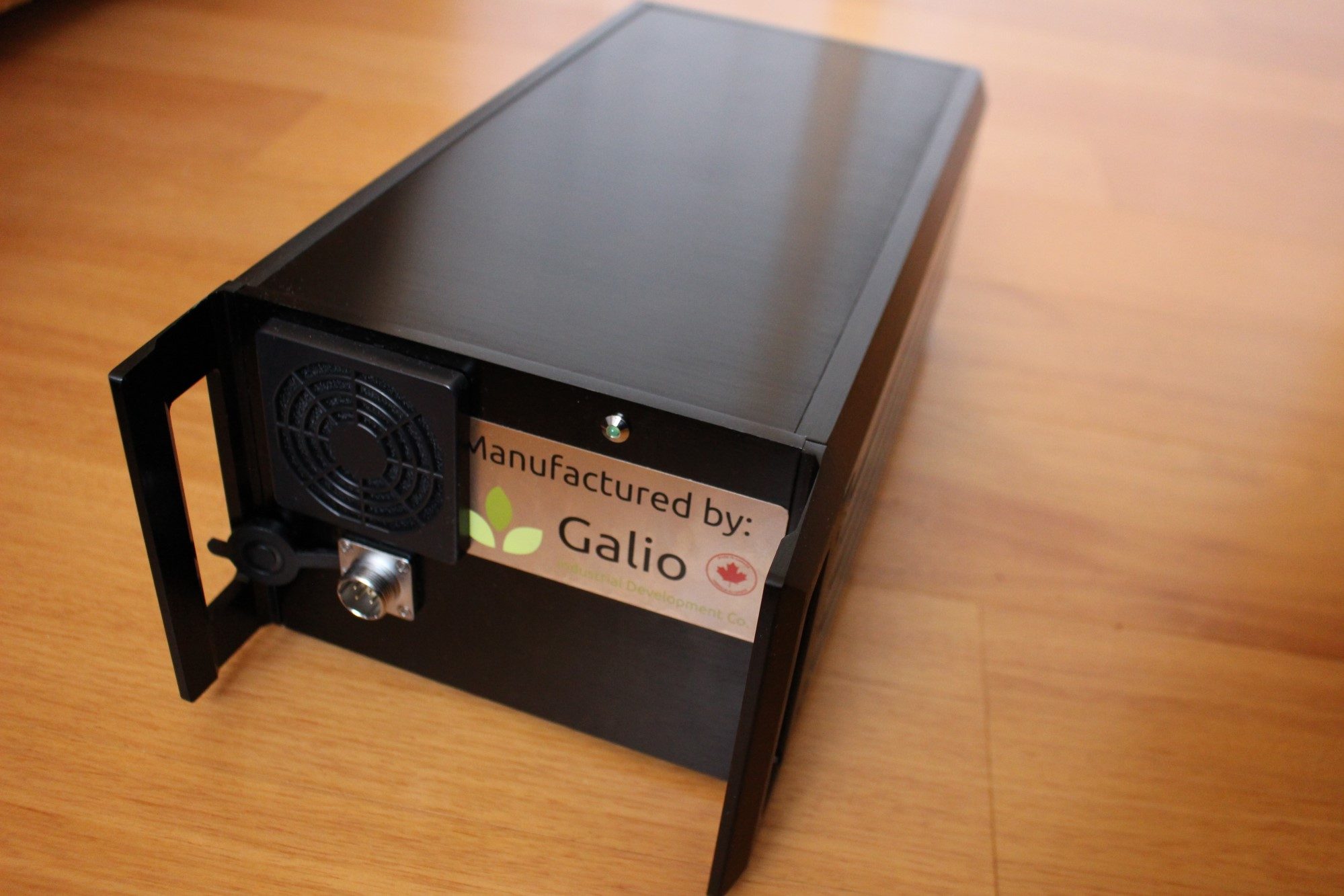

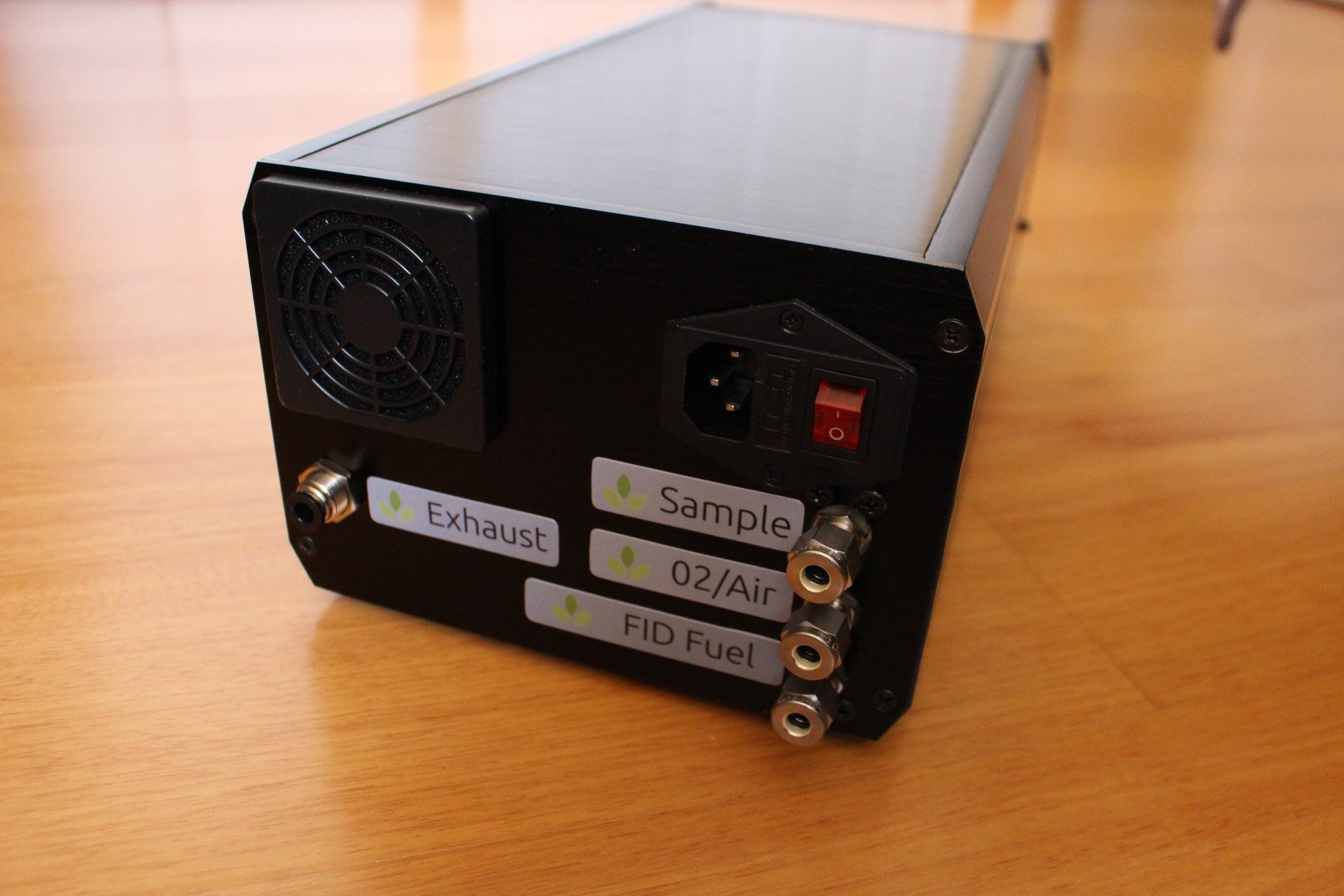

GALIO BRICK FID Module
Model: GALIO BRICK FID 1
Our GALIO BRICK FID Module - Model: GALIO BRICK FID 1 is an advanced real time THC (Total Hydrocarbons) gas measuring system developed specially for advanced real world emissions testing.
It allows measurement in dynamically changing conditions and concentrations of the exhaust gas components in real driving conditions because of its fast response time and accuracy .
Its rugged design and portability allow it to be installed inside any PEMS or other emissions measuring system for real world emissions testing.
GALIO BRICK FID 1 Module has automated self test, zero and multi point third order polynomial calibration procedures for its respective gas components. The system operates under dedicated supervisory controller that incorporates 115200 bps data transfers with host, data logging, digital I/O, SSR, analog inputs via simple COMMANDS.
GALIO BRICK FID 1
Selling Point 1
All Parts USA/Canada Made
Selling Point 2
Portable
Selling Point 3
Fast Response Time
4 Selling Point
Uses Flame Ionization Principle
| Measuring Ranges | Accuracy / Performance |
|---|---|
| THC -FID : 0 - 10000 ppm | up to 1.0% with 11 point third order polynomial calibration |
| Dimensions / Weight | |
|---|---|
| Module | 187 x 137 x 360 mm / 6.7 kg |
| General/Environment | |
|---|---|
| Temperature | 10 - 45 deg. C |
| Pressure | 0 - 100 kPa |
| Humidity | 95 % |
| Warm Up Time | 45 min. typical |
| Reliability | 20000 hours |
| Zero/ Calibration | on every Start-up, user selectable multipoint third order polynomial |
| Response Time | T 90 - 1.0 sec |
| Control | GALIO BRICK Controller |
| Power | 110/220 VAC or 24 VDC |
