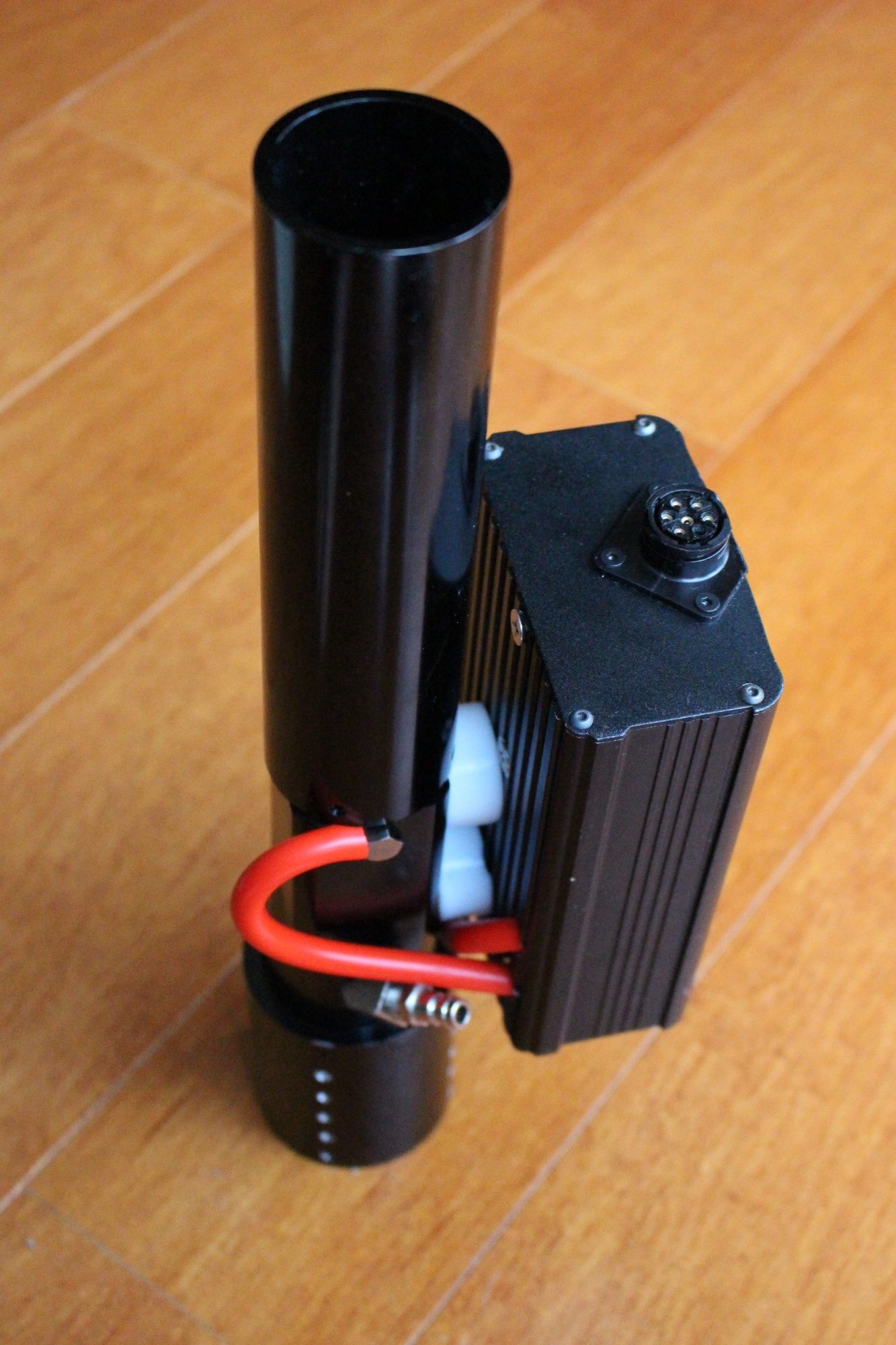

GALIO BRICK Exhaust Gas Mass Flowmeter Model: SMART 2000xfl

Our testing module SMART 2000xfl is an advanced stand alone module that measures volume of exhaust flow in real time. The measuring module comes in various sizes depending on exhaust flow ranges. It is offered is 2 types of flow measuring sensors: venturi flow tube, or averaging pitot tube depending on customer preference.

SMART 2000xfl has been the favorite module in many on board "real driving" testing applications for over 12 years all around the world.

Its control module is equipped with ultra fast PLC controller that takes input from multiple dp and temperature sensors and fast processes it into standardized volumetric flow output.

Measuring Ranges	Accuracy / Performance
Exhaust Gas Flow Ranges: 0 - 7 m3/min, 0 - 14 m3/min, 3 - 25 m3/min, 8 - 45 m3/min	+/- 1.5% Abs.
Exhaust Gas Temperature : -50 - 700 deg.C	+/- 0.5% Abs.
GPS vehicle ground speed : 0 - 150 km/hr	+/- 1.5 km/hr Abs.

Measuring Ranges

Accuracy / Performance

Exhaust Gas Flow Ranges: 0 - 7 m3/min,

0 - 14 m3/min, 3 - 25 m3/min, 8 - 45 m3/min

+/- 1.5% Abs.

Exhaust Gas Temperature : -50 - 700 deg.C

+/- 0.5% Abs.

GPS vehicle ground speed : 0 - 150 km/hr

+/- 1.5 km/hr Abs.

Dimensions / Weight
Flowmeter Tubes	dia.38 -140 mm 420 length 440 - 780 mm / 1 - 8 kg
PLC ControLler	330 x 450 x 200 mm / 3 kg

General/Environment
Temperature	10 - 55 deg. C
Pressure	0 - 100 kPa
Humidity	95 %
Warm Up Time	5 min. typical
Reliability	20000 hours
Zero/Span Calibration	on every Start-up
Response Time	10 ms
Controller	T100MD
Power	110/220 VAC, 24 VDC
